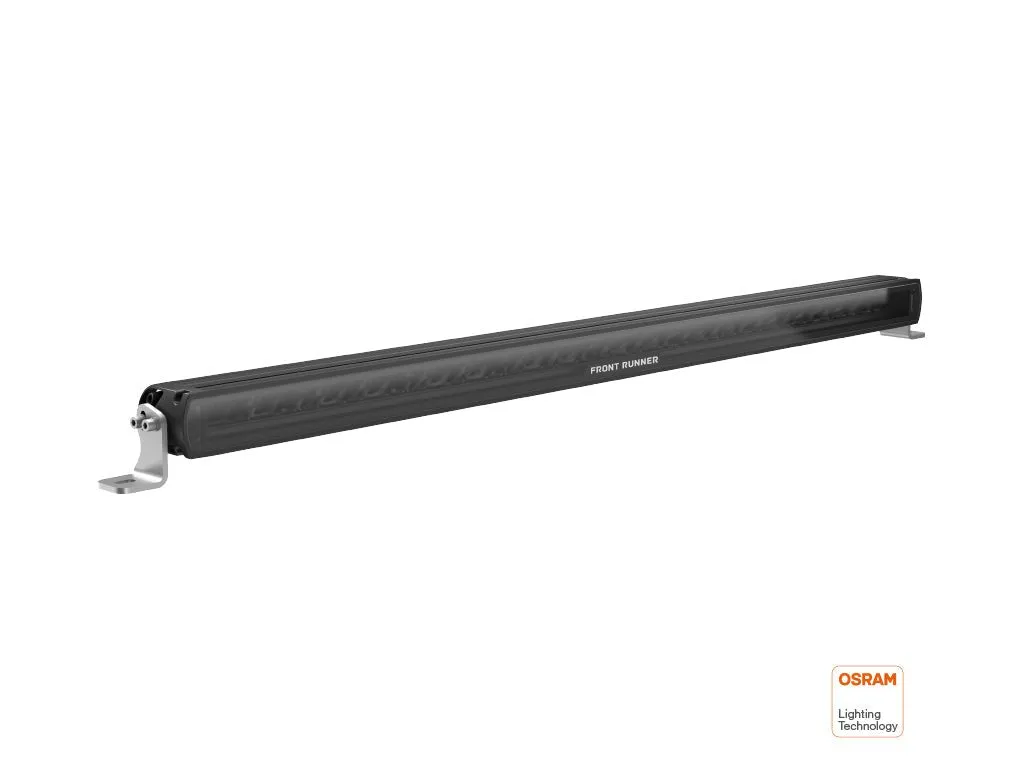

40 intense and high-performance LEDs with OSRAM technology. Reaches a distance of 635m and delivers a luminosity of 8000 lumens. The 6000 Kelvin, ''daylight'' intensity is distributed as a combo beam pattern- near and far-field illumination.

Consists of:

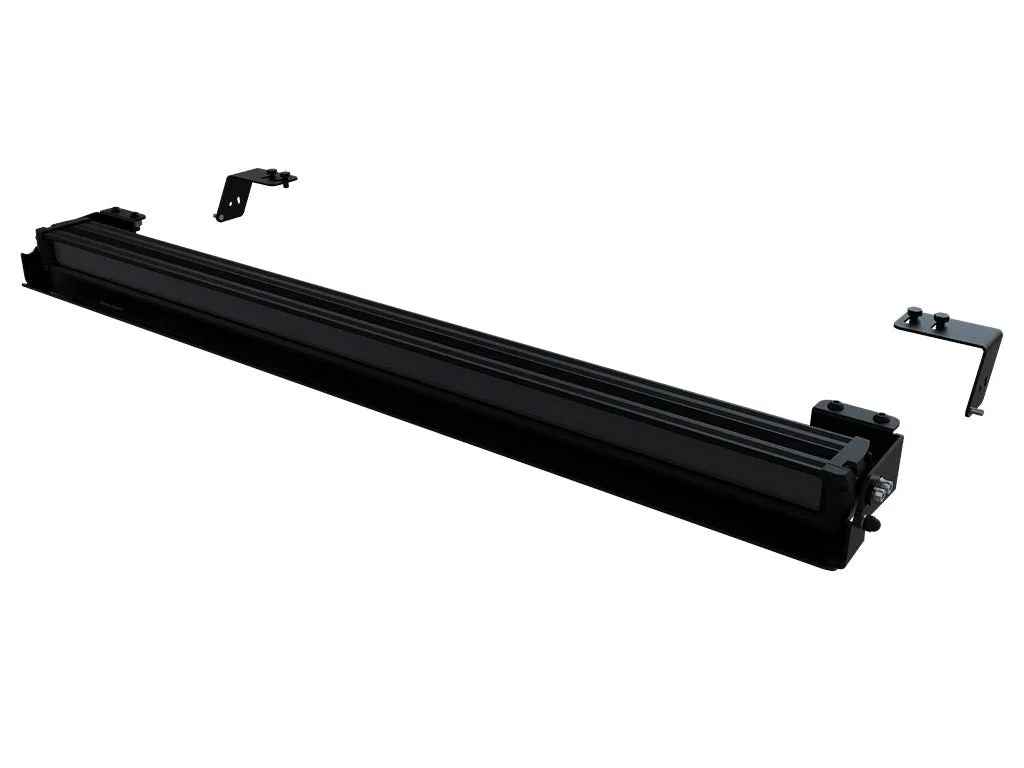

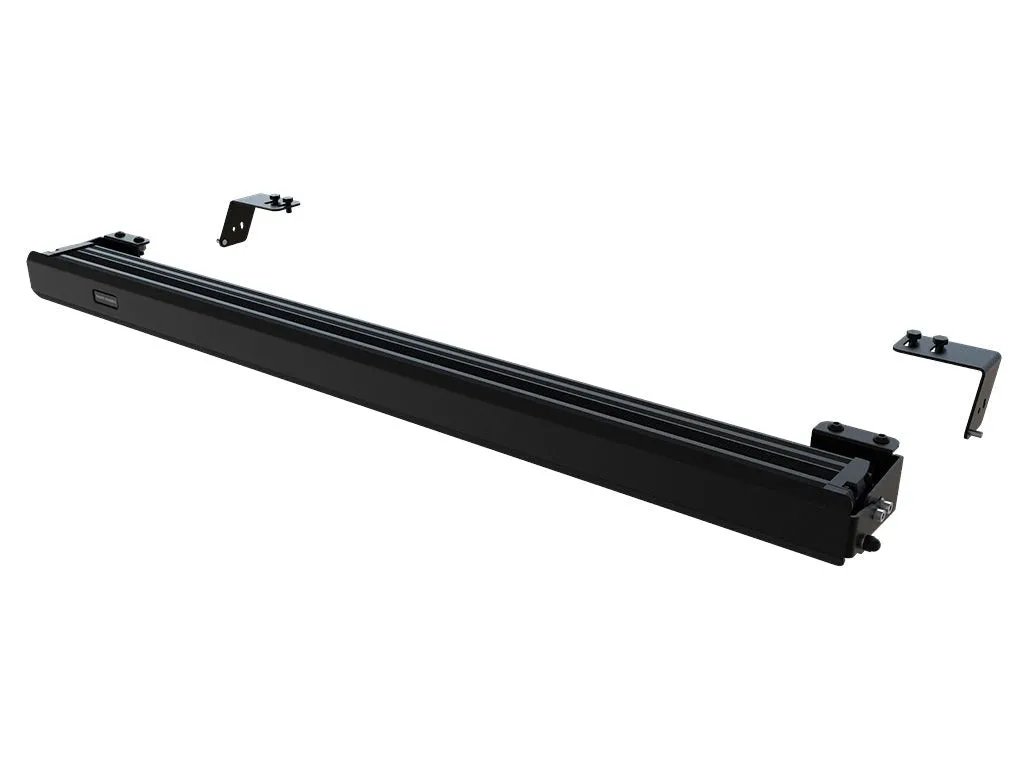

• 1 x Lightbar

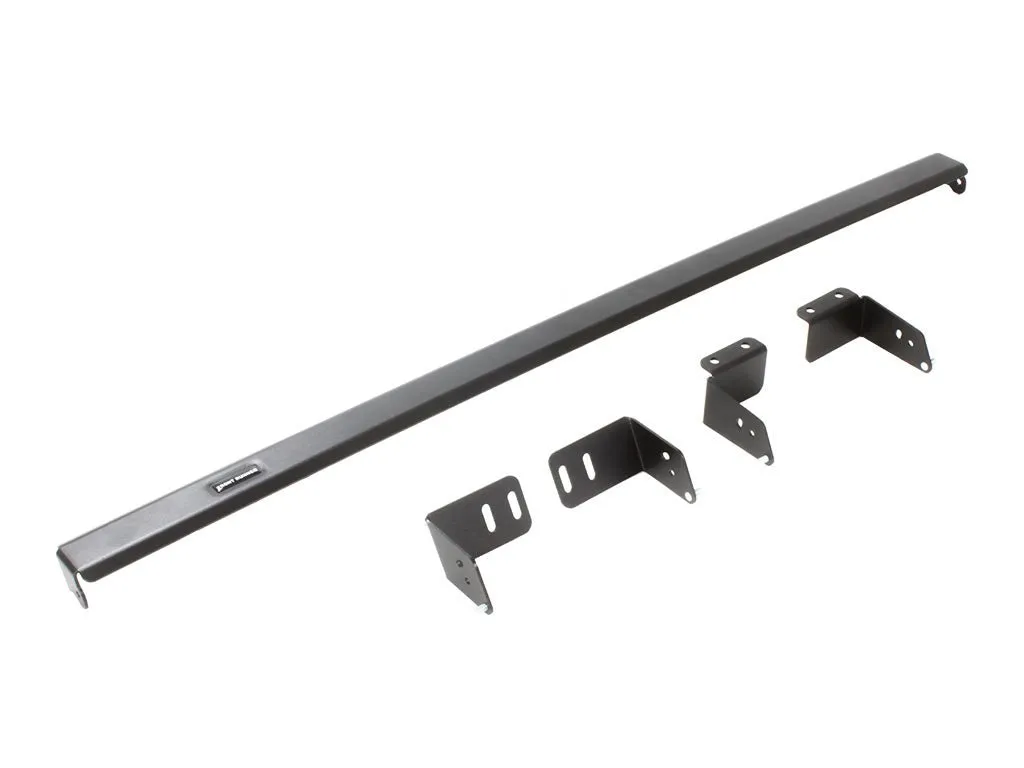

• 1 x Set of Front Mount Brackets (1 Left Hand side 1 Right Hand side)
• 1 x Set of Underneath Mount Brackets (1 Left Hand side 1 Right Hand side)
• 1 Front Cover
• Installation Hardware
• Fitting Instructions

The intelligent reflector design diverts the light from the LEDs so that oncoming traffic is only indirectly exposed to the light. To accommodate its wide range of uses, the searchlight is equipped with a durable polycarbonate lens. The integrated driver and thermal management system, measures and regulates the temperature of the LED, eliminating the risk of overheating and aids in the longevity of its lifespan.

Full LED polarity protection automatically breaks the circuit in the event of excess voltage, which ensures a long lifespan. The 12V/24V LED lightbar is ECE-compliant and versatile in application and is not limited to automotive use only. Individual installation is possible due to the FX1000-CB SM's double ECE certification (ECE-Reference: 50 50 R112). The Light Bar is approved according to ECE regulations and may therefore be installed and operated on public roads. In addition to the ECE approval, individual special regulations and legislations of the countries must be observed.

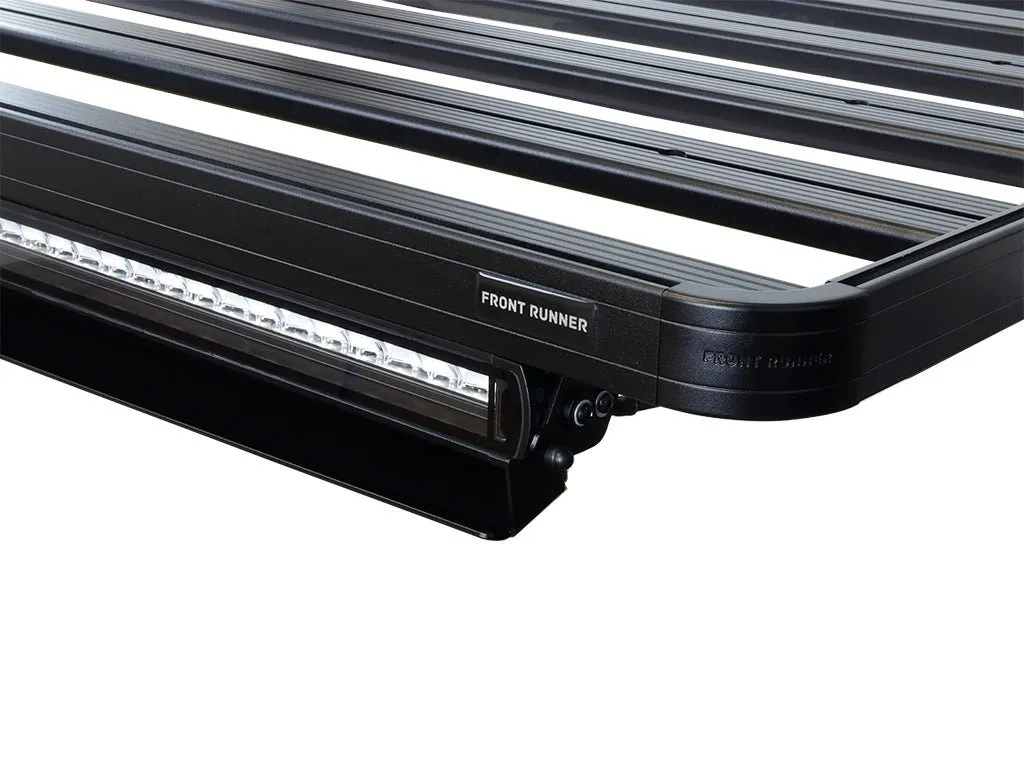

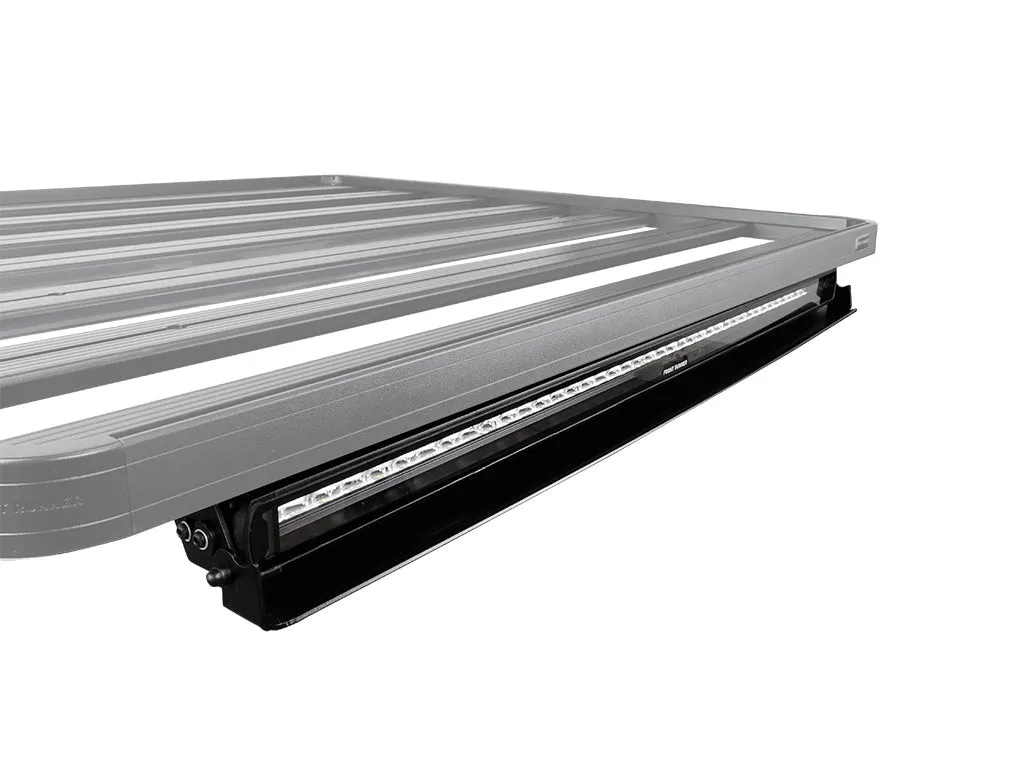

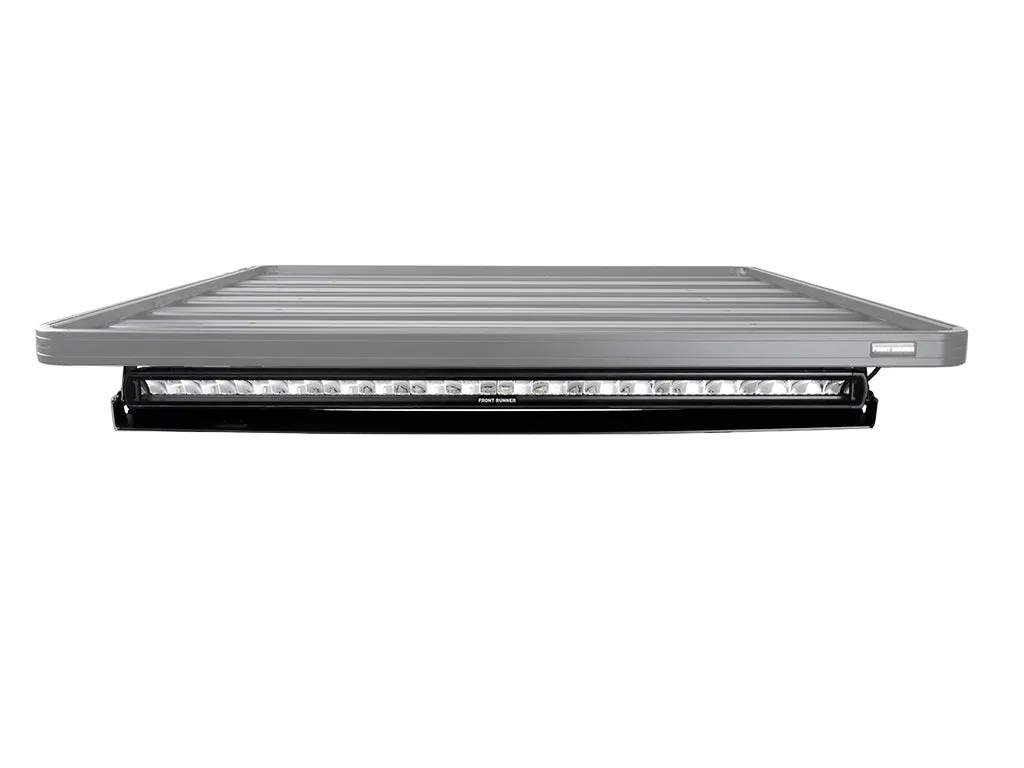

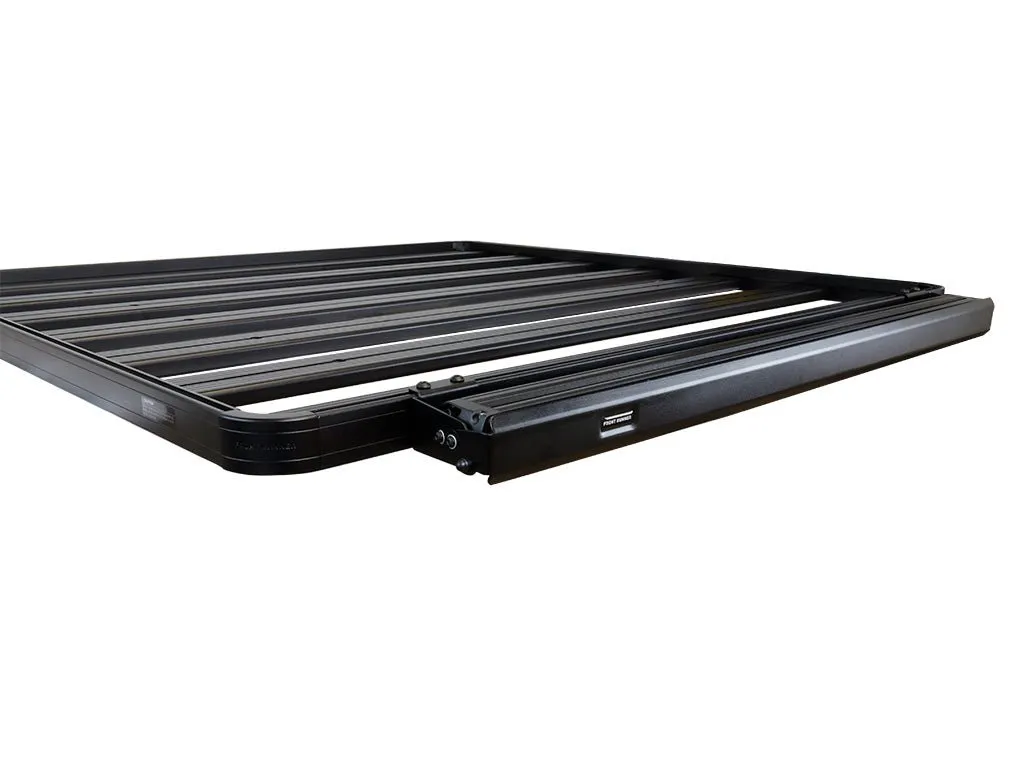

Secures to your Front Runner Roof Rack with the included {RRAC160}.

Specifications

Materials used:Black powder coated steel and aluminium mounting brackets
Product Dimensions:1115mm (44'') x 133mm (5.2'') x 74mm (3'')
Weight:6kg (13.2lbs)

Special Notes:Product type: On-road and off-road

SKU: LEDDL114-CB SM

LED supplier: OSRAM

Lumens: 800012/24V

Color temperature: 6000 K

Lifespan Tc: 5000 h

Guarantee: 5 years

Double ECE-Certification: R112

Dimensions

Fitting Instructions
