Enjoy your video games and multimedia content on a big screen with the BenQ TH685 3500-Lumen HDR Full HD DLP Projector. It projects Full HD resolution onto your screen with compatible content and features a low input lag of 8.3 ms, making it well suited for gaming. It outputs up to 3500 ANSI lumens of brightness and has a 10,000:1 dynamic contrast ratio to help produce details even in dark areas of the image.
The TH685 has one VGA and two HDMI inputs for connecting your analog and digital HD devices such as a gaming console, Blu-ray player, or cable/satellite box. Compatibility with the HDR10 and HLG HDR formats helps provide more vibrant images when used with compatible source devices and content. The TH685 includes an IR remote control for additional convenience
Specifications
| Display System | DLP |
| Native Chip Resolution | 1920 x 1080 (Full HD) |
| Supported Resolutions | Maximum: WUXGA - 1920 x 1200 |
| Max Brightness | 3500 Lumens (ANSI) |
| Offset | 105% |
| Aspect Ratio | Native: 16:9 |
| Dynamic Contrast Ratio | 10,000:1 |
| DLP Link 3D | Yes |
| Supported 3D Formats | Frame Sequential (up to 720p) Frame Packing (up to 1080p) Side by Side (up to 1080p) Top Bottom (up to 1080p) |
| Color Wheel | 6-Segment (RGBWYC) |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15 to 102 kHz Vertical: 23 to 120 Hz |
| Focus | Manual |
| Lens | f/1.94 - 2.07 (f = 11.9 - 15.5 mm) |
| Lens Shift | Vertical: ± 5% |
| Optical Zoom | Manual: 1.3x |
| Throw Distance | 29.449 - 381.732" / 74.8 - 969.6 cm |
| Throw Ratio | 1.13 to 1.46:1 (100" @ 2.4 m) |
| Projection Size | 30 - 300" / 76.20 - 762.00 cm |
| Keystone Correction | Auto-Vertical: ± 30° |
| Supported HDR Input Formats | HDR10, Hybrid Log-Gamma |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 5W |

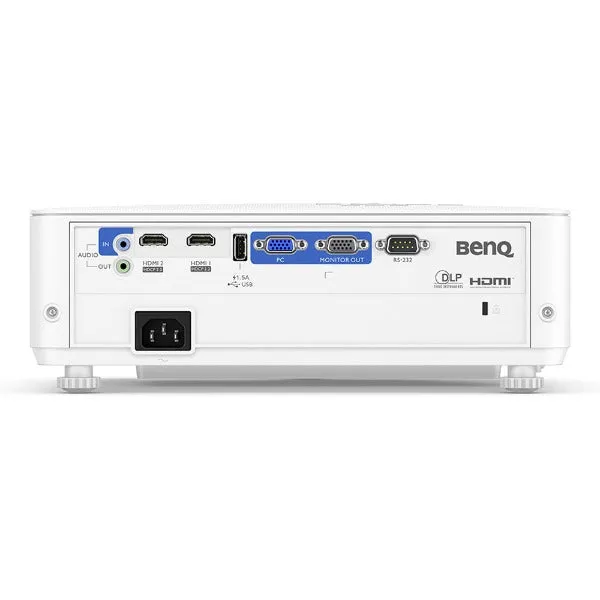

| Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x USB 2.0 (USB Type-A) Power Output 1 x RS-232 (DE-9/DB-9) Control |
| Dimensions (W x H x D) | 12.3 x 4.3 x 8.9" / 312.0 x 110.0 x 225.0 mm |

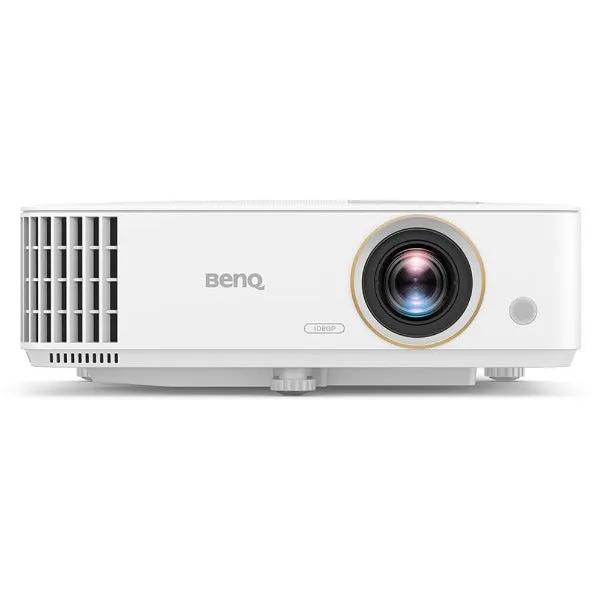

BenQ TH685 1080p WHITE 1920x1080 DLP 3500 Lumes Projector
